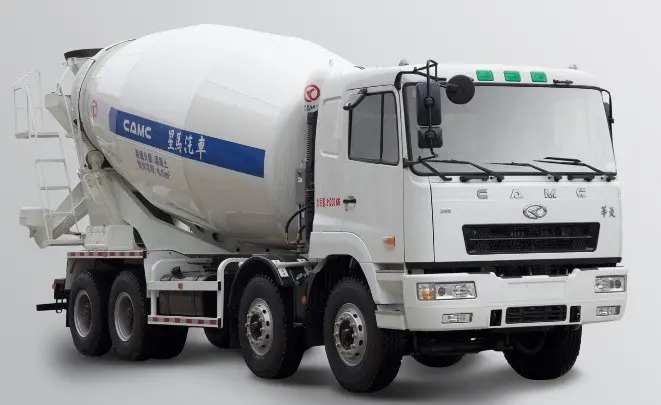

CAMC Mixer Truck 10 kub

Product Name: M5 Mixer Truck

Model Number: HW1310B36CLM5J-001

Chassis Configuration

• Drive Type: 8×4
• Steering: Left-hand drive

Engine

• Model: CM6T28.410 50
• Manufacturer: CAMC
• Max Horsepower: 410 HP
• Max Torque: 1855 N·m @ 1100–1500 rpm
• Displacement: 11.8 L
• Emission Standard: Euro V

Transmission

• Model: 9JSD200T
• Manufacturer: FAST
• Forward Gears: 9

Axles

• Front Axle: 7.5T (7500 kg)
• Rear (Driving) Axle: HL300A (5.263 ratio, 16,000 kg)

Tires

• Size: 12R22.5

Fuel System

• Tank Capacity: 4 × 212 L (CNG)

Suspension

• Spring Configuration: 9/12 leaf springs

Dimensions

• Wheelbase: 1850 + 3100 + 1350 mm
• Overall Dimensions (L×W×H): 10,000 × 2,500 × 3,950 mm

Weight Specifications

• Curb Weight: 16,000 kg
• Gross Vehicle Weight (GVW): 25,000 kg

Body / Mixer Specifications

• Mixing Volume: 12 m³
• Hydraulic System: Available in Domestic or Imported options

Pricing & Delivery

• Price: DAF Khorgos
• Payment Terms: 30% TT deposit, 70% TT before shipment
• Delivery Time: 45 working days
• Packaging: Nude packing (no crate or container)
