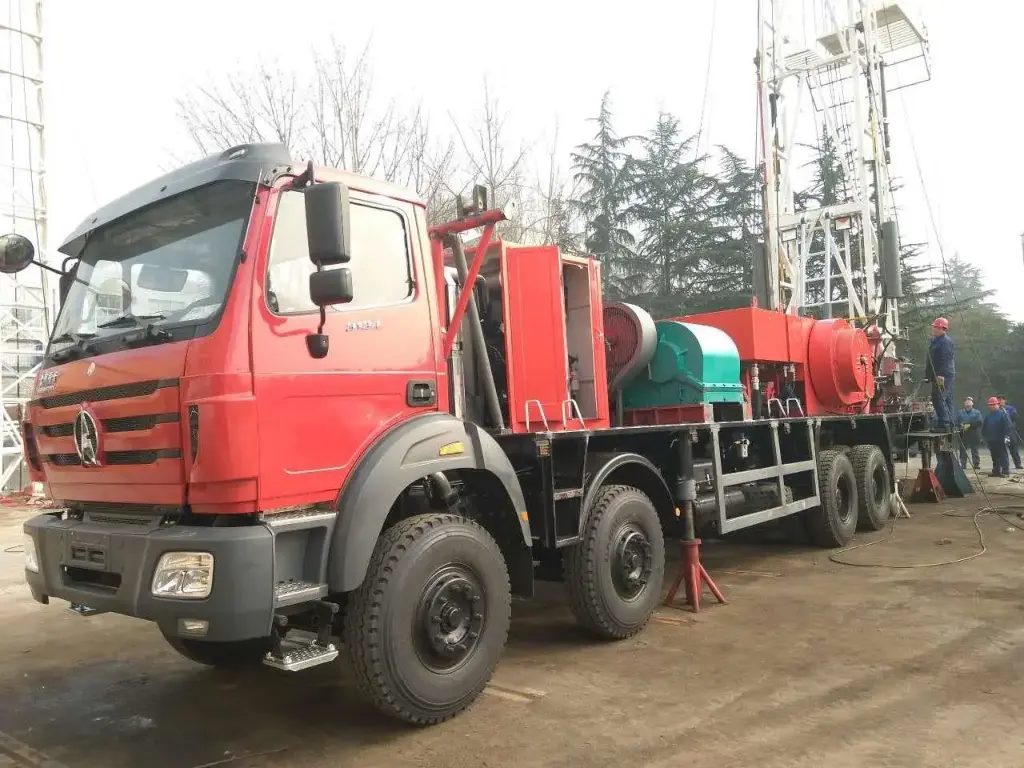

1000 m Heavy Machine Installed Well Drilling Equipment
- Maximum drilling depth:1000 m (for 4" DP pipe)
- Maximum hook load:750 kN
- Engine power:CUMMINS 6LTAA8.9-C360, 360 HP @ 2200 RPM
- Height of the mast:17 m
- Overall dimensions:18,122 × 2,500 × 4,300 mm
- Operating temperature:–18°C to +50°C
- Chassis type:8×4, load capacity – front 2 x 6.5 T, rear 2 x 13 T
- Maximum speed:65 km/h
- Hydraulic system pressure:14 MPa
- Mud pump:3NB130, maximum pressure 10 MPa, flow rate 504 L/min (100 mm piston)
- Auxiliary equipment:electric lighting, pneumatic system, safety valves, automatic height limiter (Crown-o-matic)
This installation is designed to operate in desert conditions and is suitable for the climate of Uzbekistan.
Narx Siz bergan parametrlarga qarab belgilanadi
