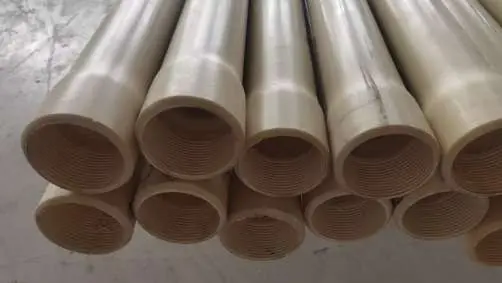

PVC pipe extrusion line

90–195 mm PVC Pipe Production Line

Quality guarantee:12 months

General description

This production lineis designed for the production of 90×8 mm and 195×14.5 mmUPVC column pipes with an external diameter. The line can produceup to 350 kg per hourof pipes and ensures high quality and stable performance.

Main equipment and components

1. Conical twin-screw extruder (SJSZ80/156)

   • Power: 55 kW
   • Production capacity: 350 kg/hour
   • Thermoregulator: Japan RKC brand
   • Electronics: Schneider contactor, ABB frequency converter

2. Automatic loader (ZJF-300)

   • Power: 1.5 kW
   • Size: 150 kg
   • Material: SUS304 stainless steel

3. Vacuum calibration and cooling tank (SZK-200)

   • Length: 6000 mm
   • Material: SUS304
   • Vacuum pumps: 2 units (4 kW each)

4. Additional cooling tank

   • Length: 6000 mm
   • Cooling type: Cooling by spraying

5. Three-gear pulling mechanism

   • Applicable pipe diameter: 75–200 mm
   • Speed: 0.3–8 m/min
   • Control: ABB frequency converter

6. Automatic cutting machine (CH-200)

   • Relevant diameter: 63–200 mm
   • Max. wall thickness: 15 mm
   • Control: PLC system

7. Online 'U' type belling (neck expansion) machine

   • Processing diameter: 90–200 mm
   • Processing time: 55–160 seconds
   • Cooling type: Water cooling (much better than air cooling)

8. Online double-sided automatic CNC washing (thread cutting) machine

   • Diameter range: 90–160 mm (internal and external threads)
   • Thread length: max. 210 mm
   • Working speed: ~120 seconds/tube
   • Control: Fully automatic CNC system (Baoyuan in Taiwan)

9. High-speed mixer (SRL-Z 300/600)

   • Hot mixer volume: 300 L
   • Cold mixer volume: 600 L
   • Motor power: 55 kW (hot), 11 kW (cold)
   • Material: SUS304 kettle, ZL102 aluminum cover

10. Pipe molds (for 90 mm and 195 mm)

    • Material: 40Cr steel (processed with hardness)
    • Calibrator material: Tin bronze

Technical requirements

• Power supply:380 V, 3-phase, 50 Hz
• Air pressure:>= 0.6 MPa
• Cooling water temperature:< 25°C

Delivery and service

• Payment terms:

  • 30% in advance (upon contract signing)
  • 70% after inspection before delivery

• Installation and training:

  • Our specialists will come to your company after delivery to install the equipment, conduct tests, and provide free training for your staff.
  • Expenses (flight, accommodation, meals, daily payment of 100 USD) will be covered by the client.

• Warranty:

  • Free spare parts will be provided for quality defects for 12 months.
  • Technical support and spare parts will also be provided at low prices after the warranty period.

Additional information

Productdesigned for use in the uranium mining industry, corrosion-resistant, high-pressure resistant, and long-lasting.

Delivery time:After advance payment50–60 business days
